QRT03
QRT03 module allow to send by GPRS connection files from portable devices with USB port and configured as "Mass Storage Device". For example is possible to acquire data from portable scanner. This way is possible to send automatically just scanned document (eg. invoice) to the company database.
This solution improve document workflow in company. Additionally is read (by 1-WIRE) driver's identification, which is added to name of sended file. Possibility to put sended data into dedicated folder on FTP server allows to keep right arrangement of sended files.
Kit contents

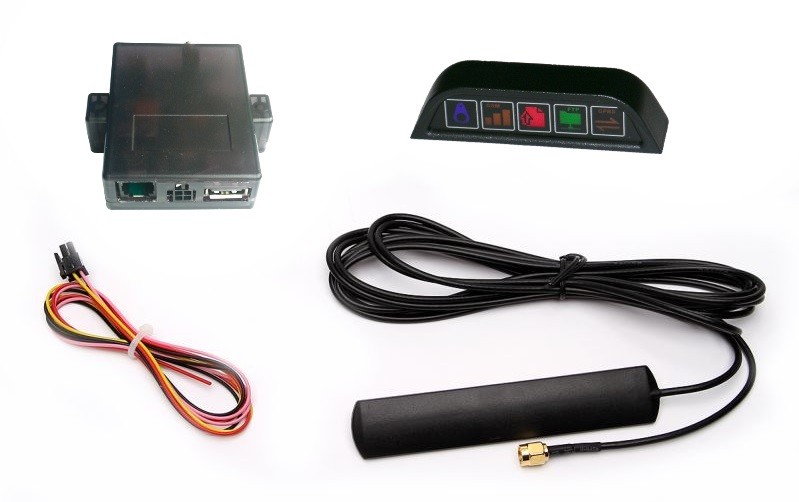

- Main module 1 pc
- GSM/GPRS antenna 1 pc

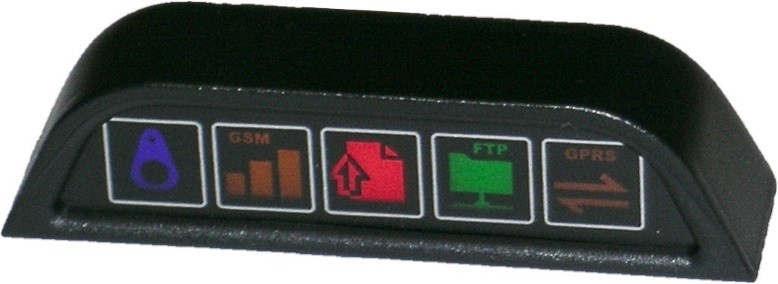

- Display of operation status device 1 pc
- Signal cables harness 1 pc
Technical data
Range of power supply voltage
10...36 V
Operating temperature
-30 ... 80 °C
Permissible humidity range
95 %
Enclosure dimensions
70 x 55 x 21 mm
The material from which the enclosure is made
ABS
Device weight
(without GSM antenna) 80 g
Ingress protection rating
IP40
GMS / GPRS section
Manufacturer and type of module
QUECTEL, M66
Supported ranges
850/900/1800/1900 MHz
GPRS - count of channels
12
GPRS - class
8
Communications ports
1-WIRE - iButton(Dallas) reader interface
1x in.
Input / output ports
Ignition analogue input (on/off)
1x in. (0 - 36 V)
USB (A type) - to the Flash USB memory or to the device in mode "Mass Storage Device"
USB (mini A type) - for configuration by PC with Windows
