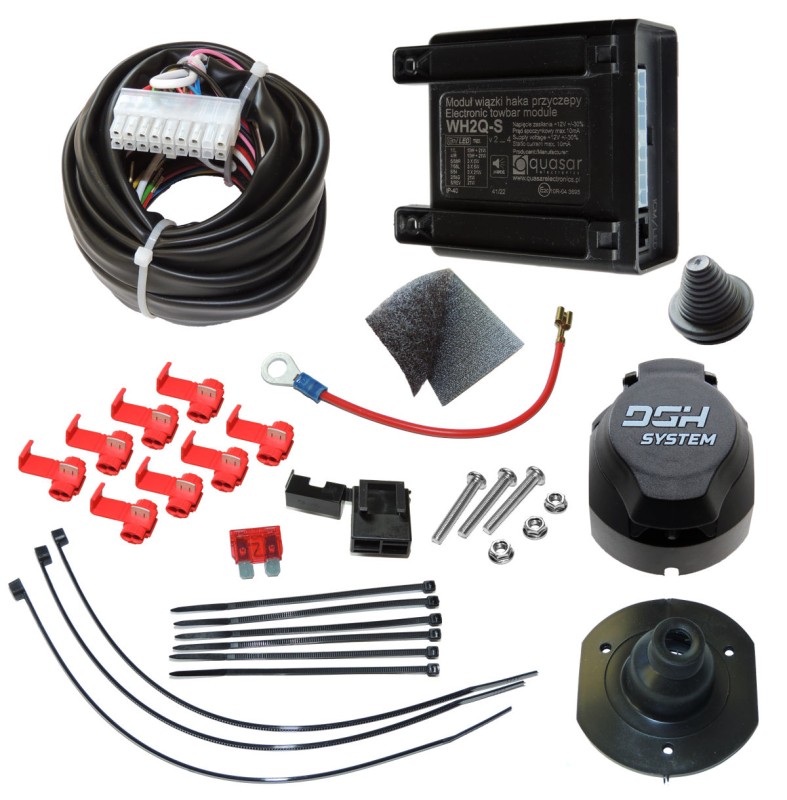

Module with standard functionality (WH2Q-S) with 8 wires in 13-pin's socket. Kit contains all accessories for connection of module to the car's electric system - and socket G13. Like whole series - this module have integrated all-in-one socket which makes an installation easier.

WH2Q-S module is a successor of canceled module WH2S and takes over all it advantages and functions.

Also installation/connection diagrams are equivalet 1:1 in terms of colors of wires, plugs and connections.

Module have standard functionality, this mean that above basics functions it make possible eg.:

• when trailer was connected - the sound confirmation of it detection;
• possibility of switch-off the control unit of parking sensors (PDC);
• sequence switching-off the fog light (54G) on car when it (54G) is still switch-on on trailer;
• signalling of damaged the directions lights on the trailer by buzzer's acoustic signal.

To the module can be connected (optionally) LED-RGY-500 - tri-colour LED indicator which inform about:

• connecting of the trailer;
• damaging the directions lights on the trailer;
• switching-on fog light on the trailer;
• loading of trailer battery (required G13-ICM-Kit).

This set can be adopted to using with eg. caravans, where is required additionally connections. In this case should be used G13-ICM-Kit, which "activate" rest of pins in socket. Moreover - this kit include ICM module (intelligent charging module) which is recommended eg. for caravans. This module protects car battery because allow to load caravan battery only when car egine is working.

Exclusive distributor of WH2Q series is:

Product requires to be installed by specialized workshop - read here.
