Features
standard system - for typical passenger cars suitable to the 13-pin plug of the trailer trailer reverse lights control LED/bulb lamps support, PWM control working with bulb lamps on the trailer recognition of PWM steering of car lamps (analogue method) independent rear fog lights control contains separately circuit for trailer battery charging supply voltage (+12V) is permanently brought out in the socket output for enabling of switching off PDC signalization in car OPTION: additionally variants of stitching off PDC signalling using separatelly PDC-OFF modules signaling of status by tri-color LED display signaling by LED display about malfuntion of directions lights on the trailer displaying status of switching-on fog light on the trailer displaying status of connection/disconnection of trailer displaying status of trailer battery charging
Add to compare list Add to selected
MP4S-G13

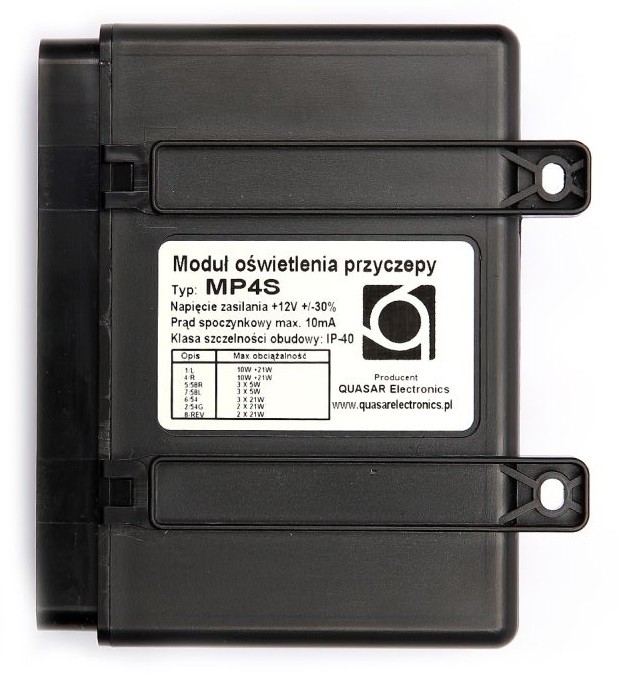

MP4S-G13 module is expanded controller of trailers light which was designed particularly for caravans (also with "own" battery) which:

  • steering of FOG light by sequential method (is possible to switch off FOG light on car leaving lighting on trailer);
  • has an output for deactivate signalling of rear parking sensors when trailer is connected (can be required to use PDC... modules);
  • properly working with PWM steering of lamps in car (when by one wire are controlled two lights - eg. "STOP light" and "tail light");
  • has function an intelligent charging of caravans battery.



In addition MP4S-G13 module have an information functions (using separate tri-colour LED) for signalling:

  • connection of the trailer;
  • damaging the directions lights on the trailer;
  • switching-on fog light on the trailer;
  • broken fuse in circuit loading of trailer battery.



NOTE:

  1. module MP4S working with trailers which use "filament bulbs" (not LED) lamps;
  2. module cancelled - currently is in offer digital module MP5-DS-G13.



Kit contents
  • Main control unit 1 pc
  • Main cable harness (power and to the socket) 1 pc
  • Socket G13 1 pc
  • Signal cables harness 1 pc
  • Information LED indicator (3-colours) 1 pc
  • Mounting set 1 set
  • Screw set 1 set
  • Connections diagram 1 pc
Module main features
Current load inputs
≤2 mA
LED lights and single filament bulbs support (car)
Working with cars which use pulse width modulation (PWM) for powering lamps
(analogue)
Trailer/camper connection detection (bulb lamps)
Trailer/camper connection detection (LED lamps)
Ability to control of park sensors module in car
Trailer reverse light control
Permanent power supply to trailer socket
Intelligent charging of trailer battery
Alerts & Notifications
Trailer connection notification
LED-RJ11-5
Trailer turn signal failure
LED-RJ11-5
Trailer/caravan fog lights switching on/off notification
LED-RJ11-5
Trailer battery charging notification
LED-RJ11-5
Car rear fog-lights control modes
Trailer fog light sequential(independent) control
Car rear fog lights cut-off
Technical data
Power supply voltage
10-18 V
Position lights output power, max
(each of sides) 3 x 5 W
Stop lights output power, max
3 x 21 W
Turn signal output power, max
(each of sides) 21+10 W
Fog-light output power, max
21 W
Reverse lights output power, max
21 W
Trailer battery charging current, max
10 A
Parking sensors output load capacity, max
0,5 A
